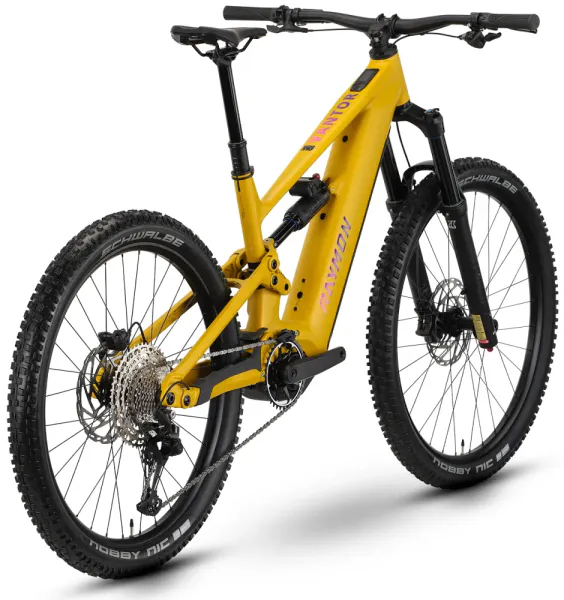

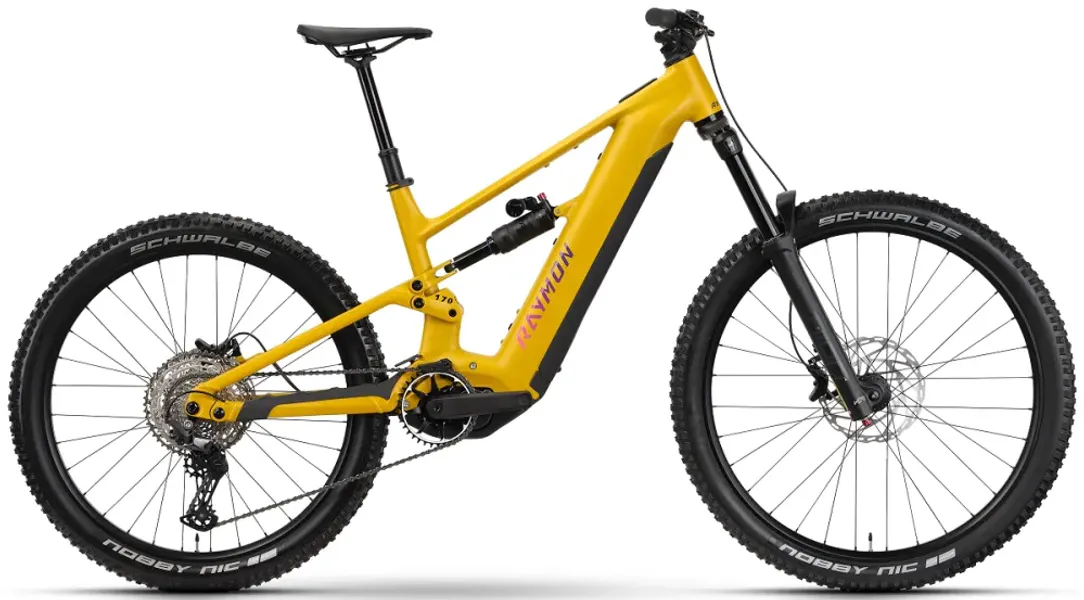

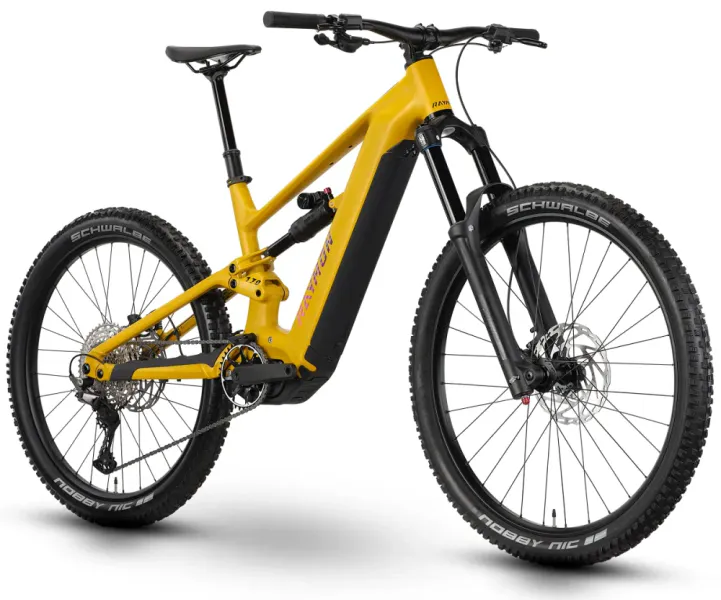

Raymon Ravor LT Comp L 29"/27.5", Kurkuma, YX4L, 840Wh

Art.nr: 2102602770
62.999,-
-+
Raymon
På lager: 1



Raymon Ravor LT Comp



The slope in front of you? Steep as your pulse. The ground? Loose gravel, jumping edge. Your fingers grip the grips tightly, you take a deep breath - and then you let it go.



Every centimeter of trail sends adrenaline pumping through your veins. You can feel your Ravor LT working beneath you: How the suspension swallows, how the mullet tires bite into the ground. With 170 mm front and rear suspension travel, there's no more “too steep”. Drops? You eat them. Gaps? You take them. Berms? Brap. You speed away. When others stop, you ride on because you know you can rely on your Ravor LT without compromise. So: helmet on, trails clear - your adventure begins!



Drive unit

The Ravor LT supports you with the brand new Yamaha PW Link System. 48 volts, 100 Nm and 800 W torque, pure enduro power - make you 400% stronger. The battery? Removable, lockable, with 840 Wh you have plenty of range in the tank. And if you forget to charge it, don't stress: the quick charger charges your bike in no time at all.



System

The Yamaha system is not only brutally powerful, but also smart. You decide how much thrust you want: directly on the handlebars or via the app. The new software lets you fine-tune each level and track your performance over the long term. The integrated top tube display gives you the most important ride details at a glance. And if you want more, you can use the navigation system via your cell phone, check your range or activate the anti-theft protection during breaks.



Key components

- Frame: Alloy, 170 mm travel

- Wheelsize: Mixed, 29"/27,5"

- Drive unit: Yamaha PW-X4, 100 Nm/800 W

- Battery: Yamaha Link, 840 Wh

- Fork: SR Suntour Aion38X RC, Air, 170 mm

- Shock: SR Suntour TriAir2 R, Air

- Drivetrain: Shimano Deore, 12-speed

- Brakes: Tektro Gemini SL, 203 mm





Frame 29/27.5", Alloy 6061, removeable battery, boost, 170 mm
Fork SR Suntour Aion38X RC, air, 170 mm, tapered
Shock SR Suntour TriAir2 R, air, 230x65 mm
Motor Yamaha PW-X4, 250/800 W, 100 Nm
Battery Yamaha Link, 840 Wh, 48 V
Charger Yamaha Link Charger, 4 A
Control Unit Yamaha Link Remote
Display Yamaha Link Integrated Display
Brake type Hydraulische Scheibenbremse
Brake disc rear Tektro TR54, 203 mm, 6-bolt
Brake front Tektro Gemini SL, 4-piston, hydr. disc brake
Brake disc front Tektro TR54, 203 mm, 6-bolt
Rear derailleur Shimano Deore, RD-M6100, Shadow Plus, 12-S
Shift lever Shimano Deore, SL-M6100, Rapidfire Plus
Chain Shimano CN-M6100
Chain ring Raymon, Narrow Wide, 34T
Crank arm Raymon FC40, forged alloy, ISIS
Cassette Shimano CS-M6100, 10-51T
Wheel set Raymon VR23/DT210, 6-bolt, 15x110/12x148 mm
Tyres Schwalbe Nobby Nic Perf, ADDIX, 62-622, 29x2.40, Tubeless Ready
Tyre rear Schwalbe Nobby Nic Perf, ADDIX, 62x584, 27.5x2.40, Tubeless Ready
Grips Raymon Sport, lock on
Clamp 38,9, hex screw
Handlebar Raymon Riser 35 mm, Sweep: 9 °, Rise: 20 mm
Saddle Raymon 143 VM Fit
Seatpost Raymon, 34,9 mm, Dropper Post
Stem Raymon 35, 0 °, Ahead
Headset FSA NO.80/62/CRII, ICR
Kickstand IC44, compatible
Pedals Raymon, thermoplastic
max. permissible weight 130
